液化天然氣中CO2測定，液化石油氣，二甲醚，甲縮醛，乙縮醛，乙醇，室內空氣，焦?fàn)t煤氣，煉廠氣，天然氣，變壓器油，多氯聯苯，植物油，6號溶劑殘留，裂解進樣器，增塑劑，塑化劑

液化天然氣中CO2測定
液化天然氣中CO2測定 詳細信息：

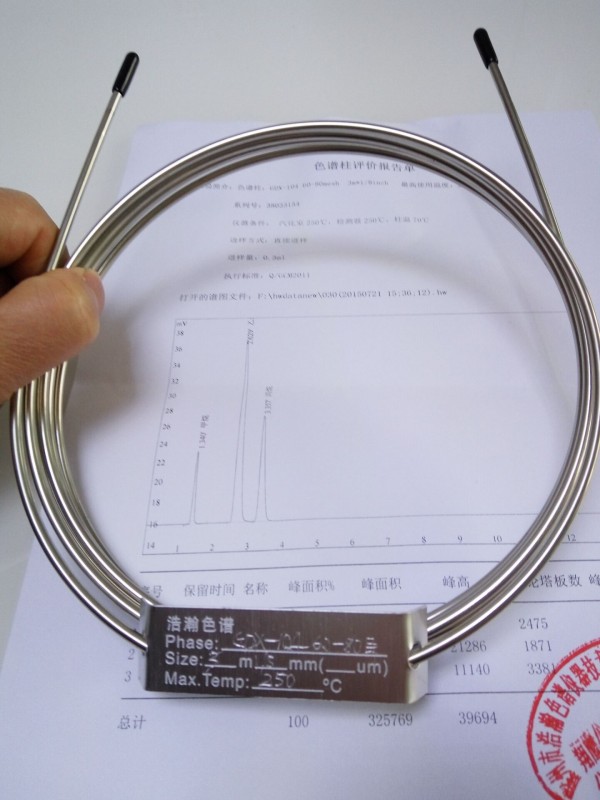

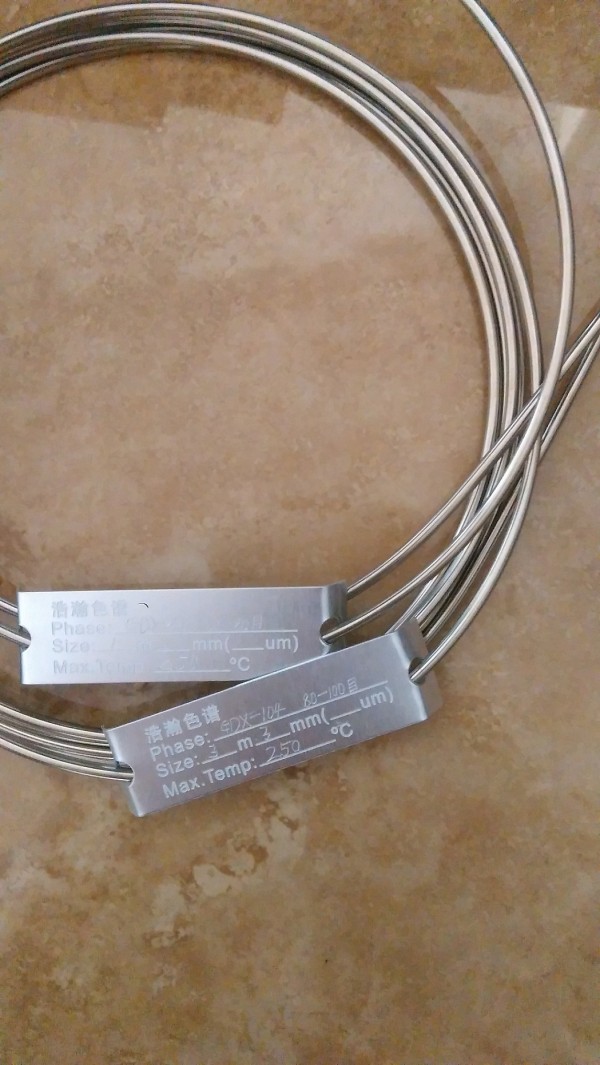

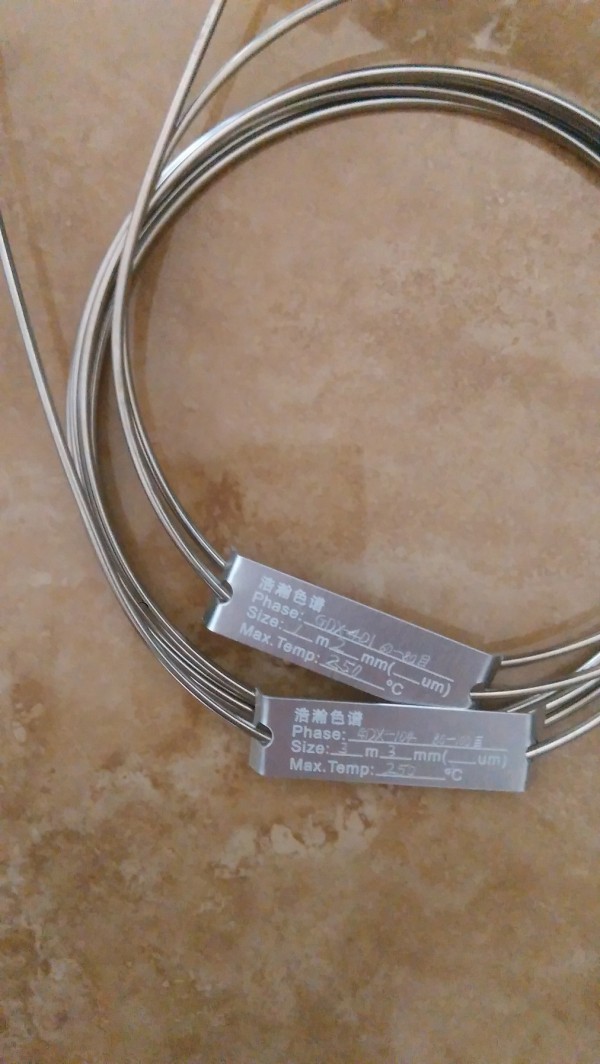

名稱：填充柱
固定相：高分子小球
粒度：60-80目
規格：8m*3mm
型號：GDX-104
應用：GB/T 38753-2020 液化天然氣

浩瀚色譜（山東）應用技術開發有限公司檢測天然氣中二氧化碳含量的方法,其技術方案是:利用被測組分二氧化碳含量在GDX-104填充柱上能得到很好的分離效果而呈現特殊的信號,而這些信號被熱導檢測器(TCD)檢測到同時形成明顯的吸收峰,實踐表明形成的二氧化碳含量的峰面積與其含量成正比例關系;故將標氣中二氧化碳的峰面積與含量制作成標準工作曲線.

液化天然氣中CO2測定 測試譜圖：



Determination of CO2 in Liquefied Natural Gas
Determination of CO2 in Liquefied Natural Gas Details:

Name: Packed column
Stationary phase: polymer pellets
Granularity: 60-80 mesh
Specification: 8m*3mm
Model: GDX-104
Application: GB/T 38753-2020 Liquefied Natural Gas

The method used by Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. to detect carbon dioxide content in natural gas. The technical solution is: using the carbon dioxide content of the measured component on the GDX-104 packed column to obtain a good separation effect and present a special signal. These signals are detected by the thermal conductivity detector (TCD) and form obvious absorption peaks. Practice shows that the peak area of the formed carbon dioxide content is proportional to its content; therefore, the peak area and content of carbon dioxide in the standard gas are made into standard work curve.

Determination of CO2 in LNG Test spectrum:
